Technical Overview
Sound power at max. speed (2010/30/EC)
56 dB
Max. air extraction
399 m³/h
Boost position air extraction
699 m³/h
Material body
Coil coated steel
Built-in / Free-standing
Built-in
Width
90 cm
Awards
Specifications
Width
90 cm
Installation typology
Wall-mounted
Operating Mode
Convertible
Total power of the motors
105 W

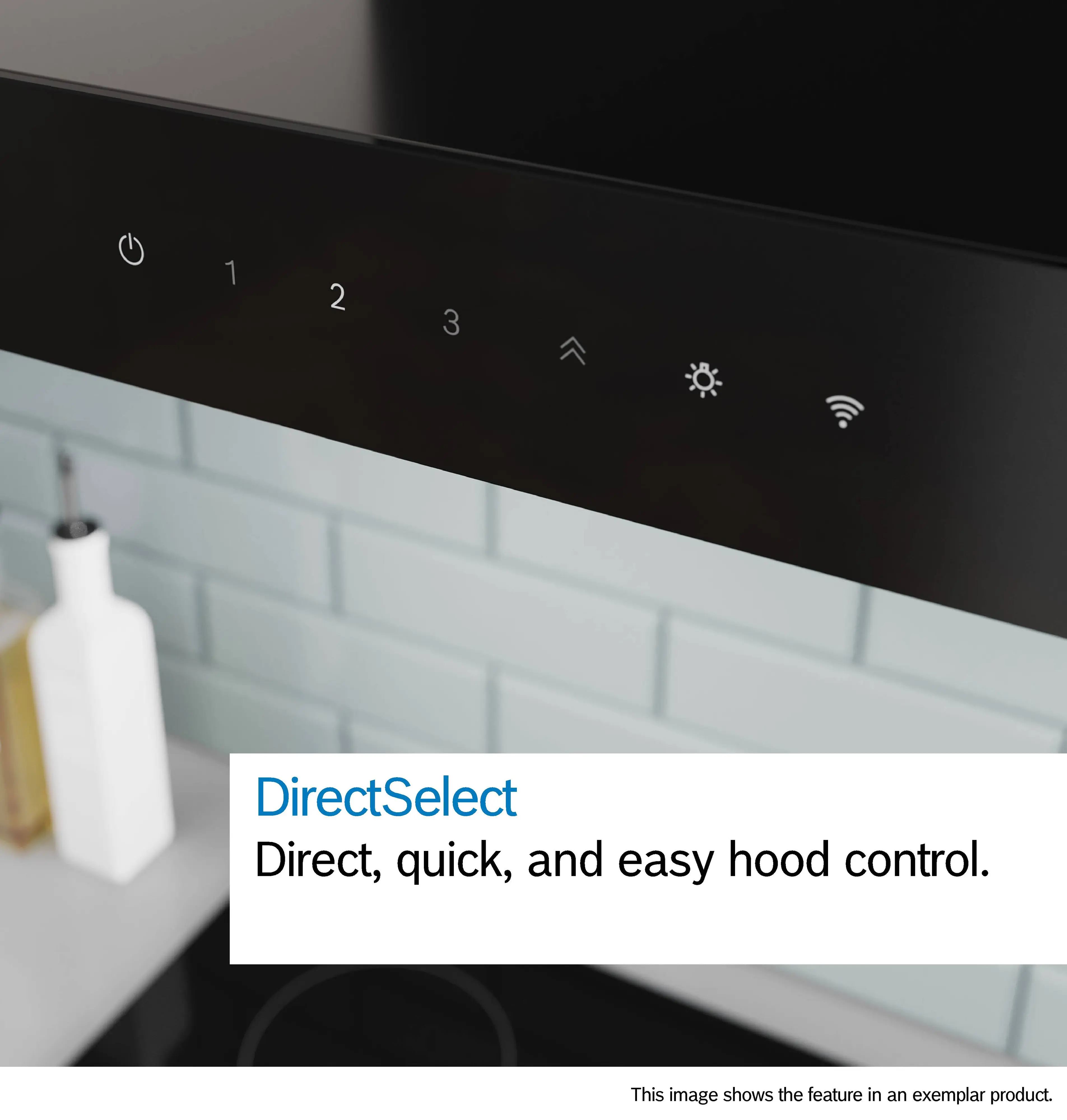

Type of control setting and signalling devices
touch control, Via app
Number of speed settings
3-stages + intensive setting
Max. air extraction
399 m³/h
Boost position air extraction
699 m³/h
Sound power at max. speed (2010/30/EC)
56 dB
Sound power boost (2010/30/EC)
68 dB

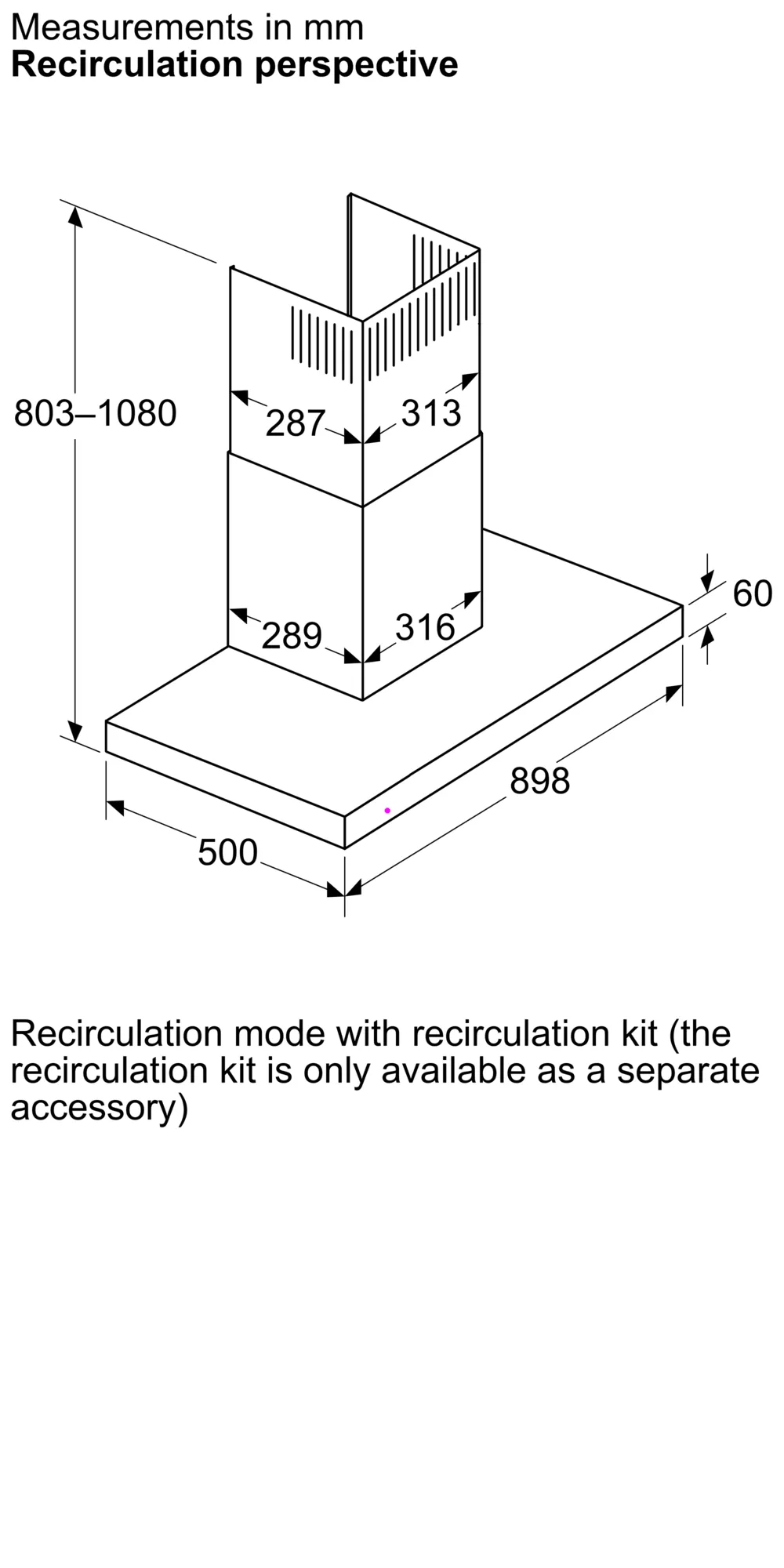

Max. air recirculation
410 m³/h
Boost position output recirculating
677.0 m³/h
Sound power at max. speed (recirculation)
64 dB
Sound power boost (recirculation)
73 dB

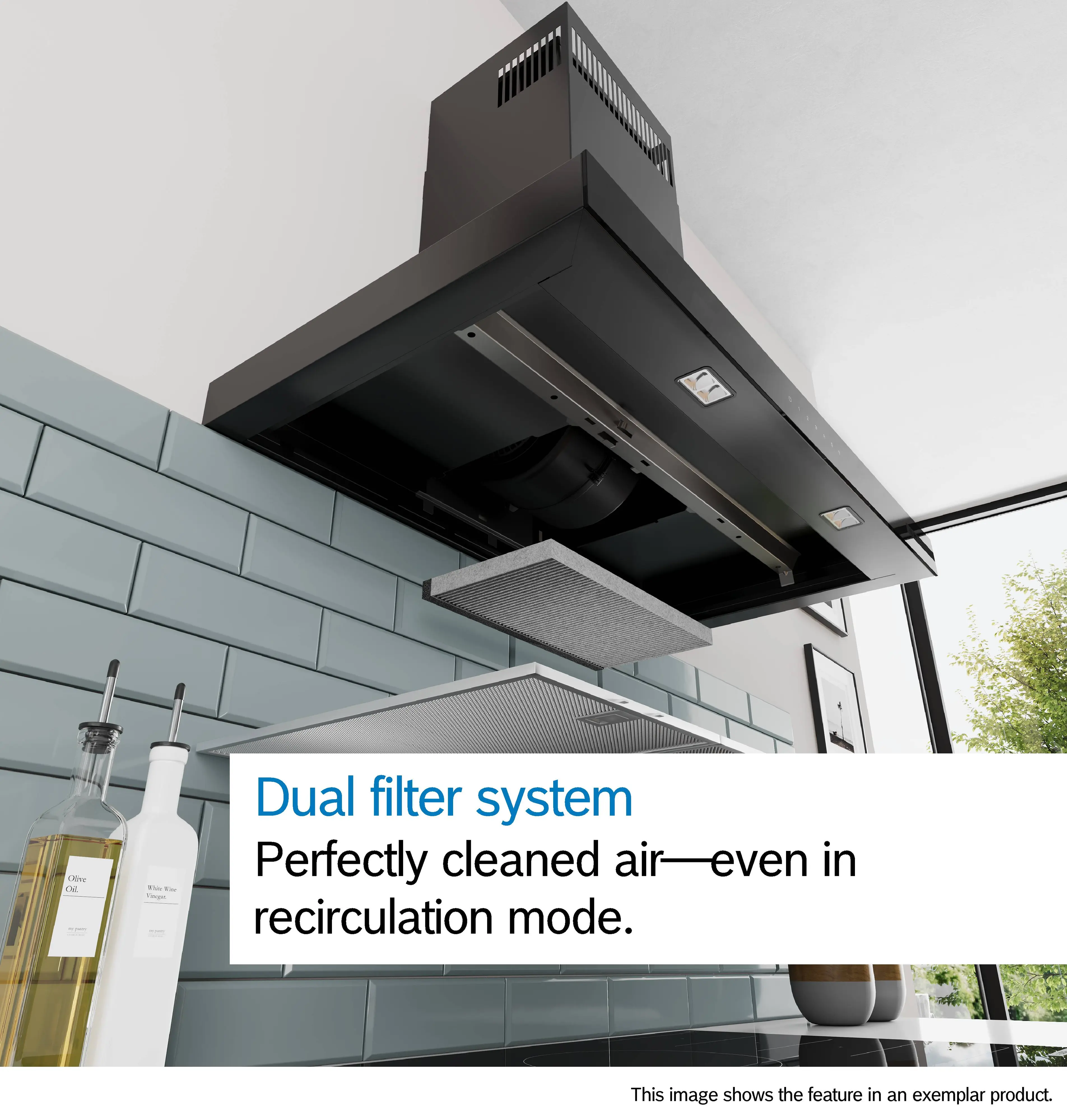

Grease filter material
Washable stainless steel
Total annual energy consumption
24.5 kWh/annum

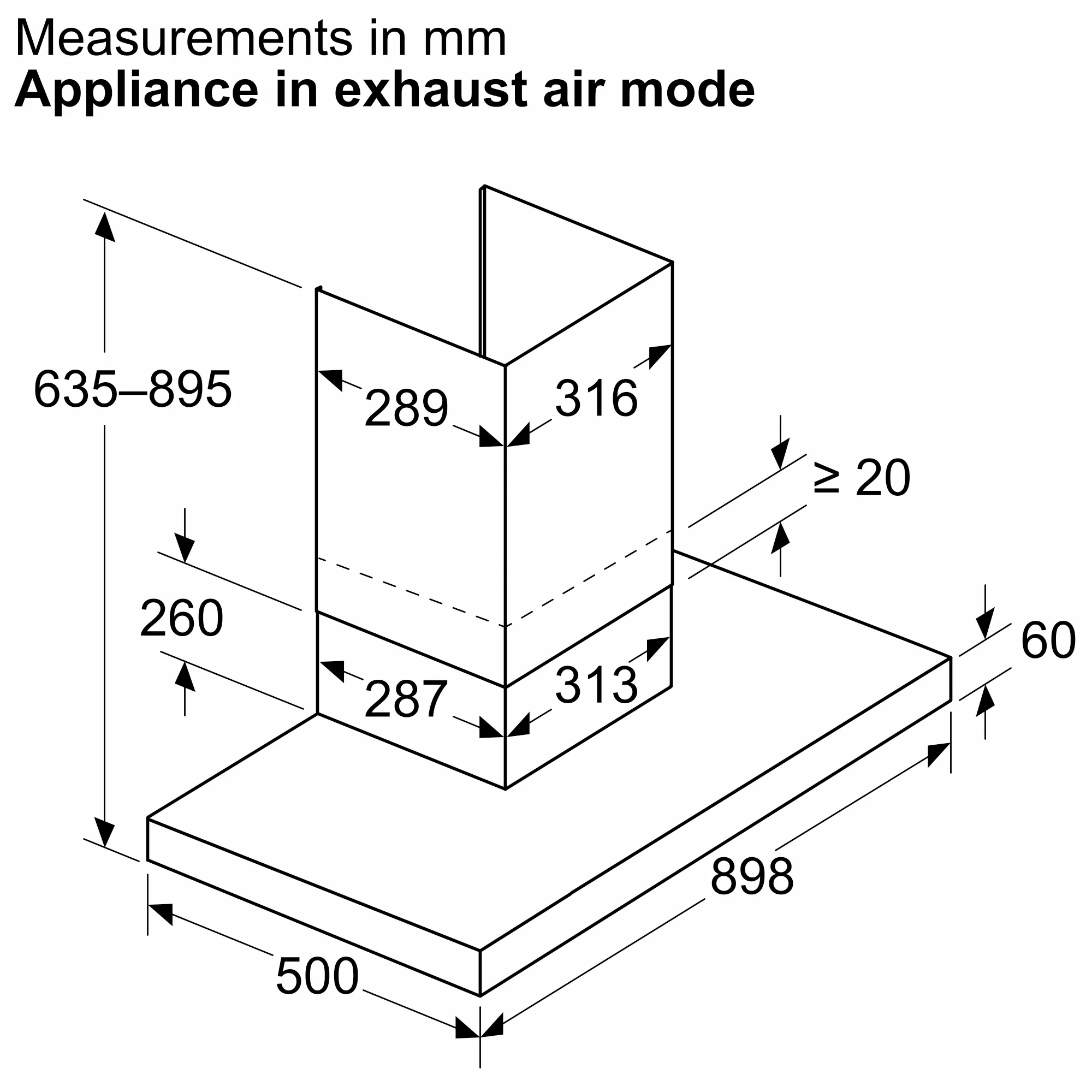

Height of the appliance
60 mm
Width of the appliance
898 mm
Depth of the product
500 mm
Height of the chimney
GENERAL.N_A mm

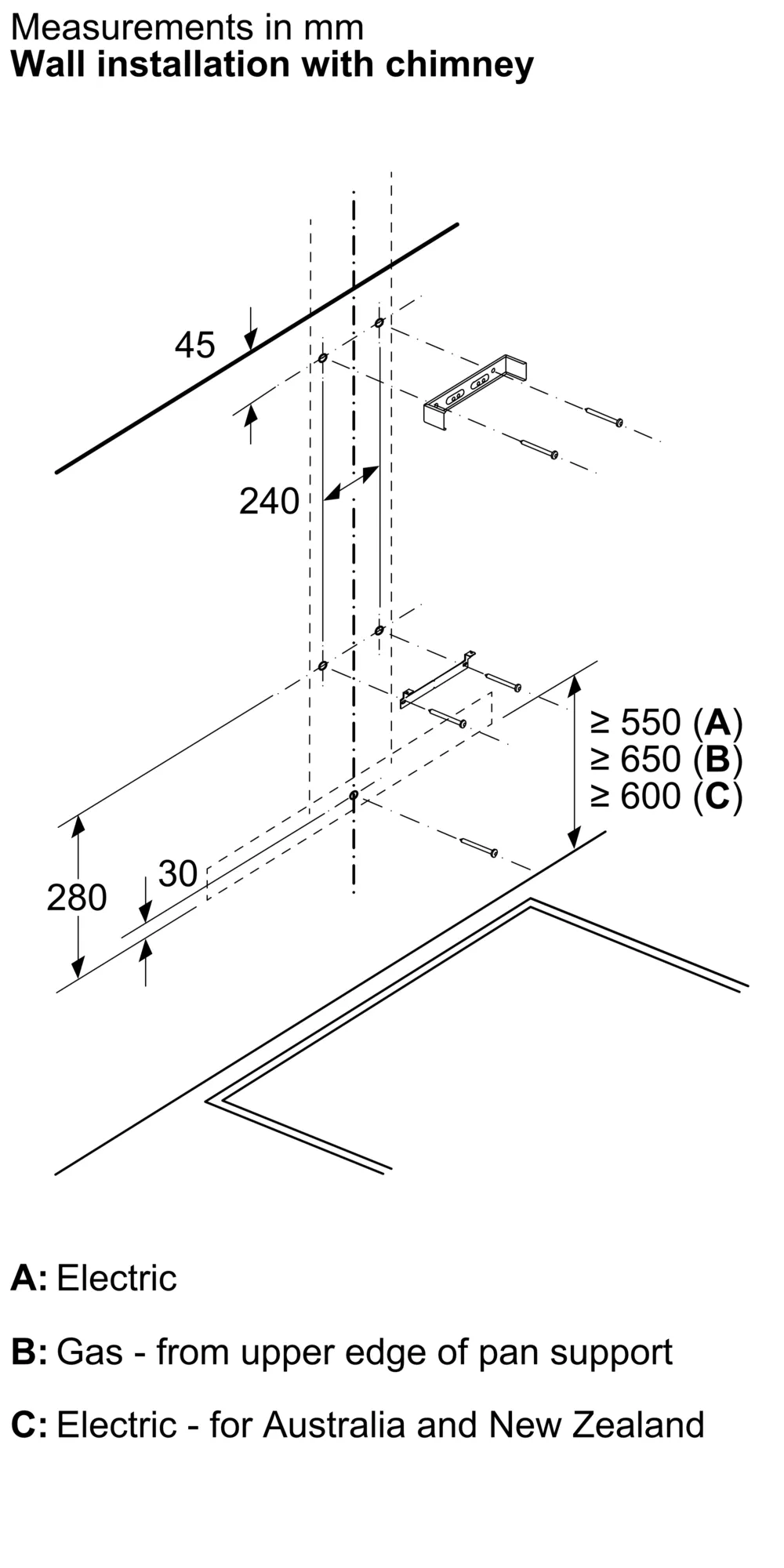

Minimum distance above an electric hob
550 mm
Minimum distance above a gas hob
650 mm

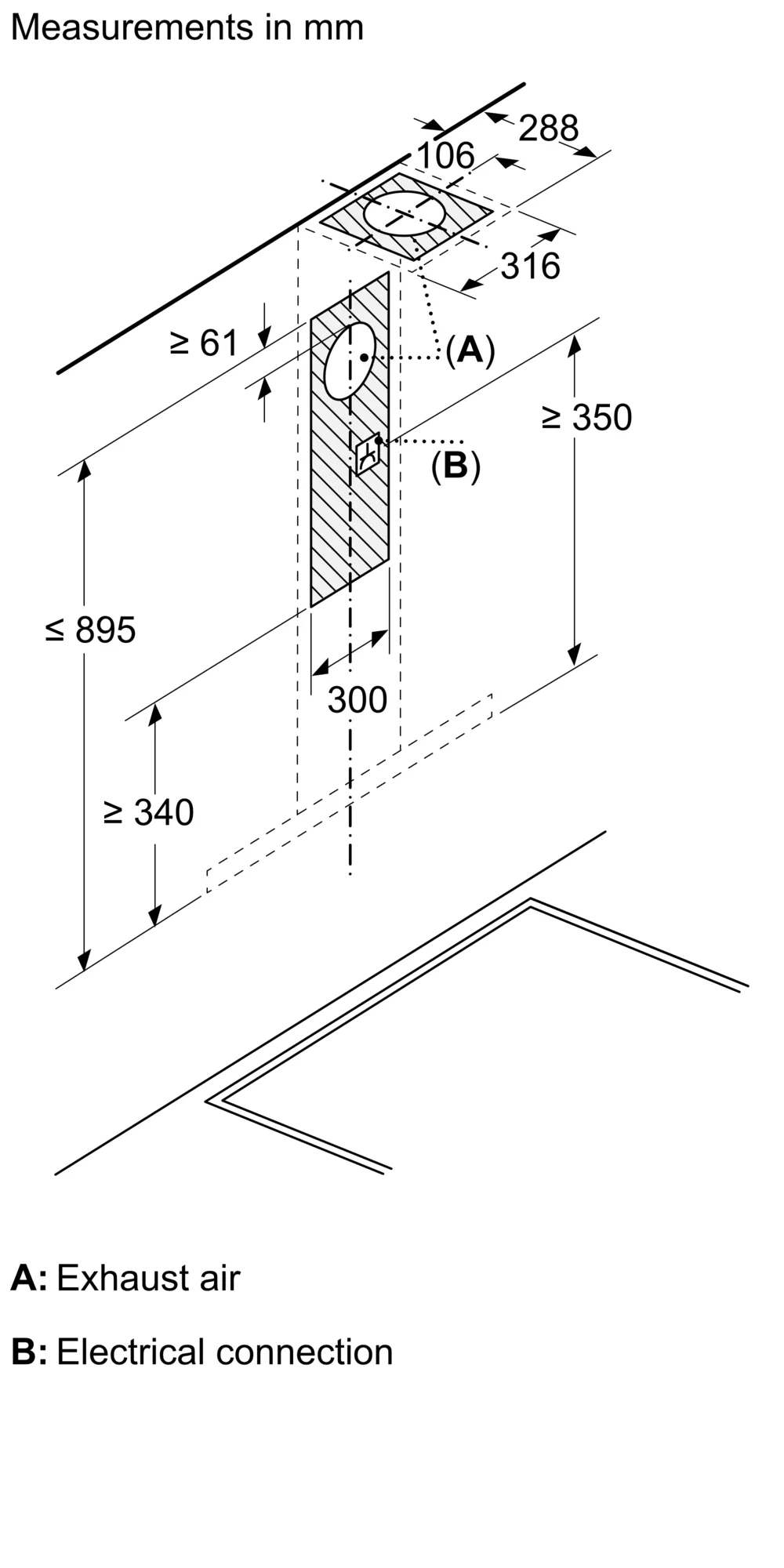

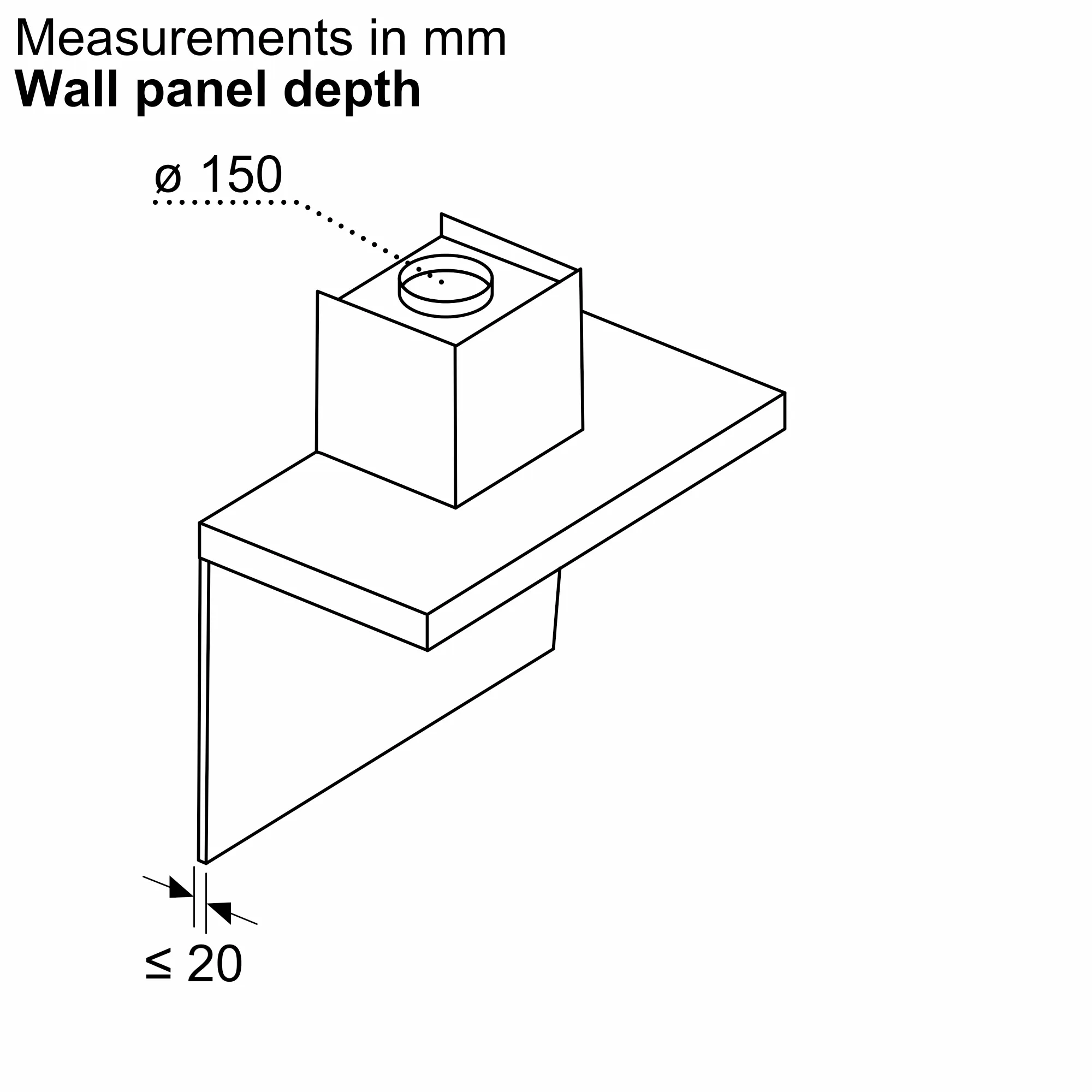

Diameter of air outlet
120 / 150 mm
No-return airflow flap
No
Length electrical supply cord
130 cm
Net weight
17.1 kg
1 / 0
PerfectAir
No
SilentPowerDrive - efficient and extra silent
Yes
Extremely silent appliances
Yes
Clean filter reminders
No

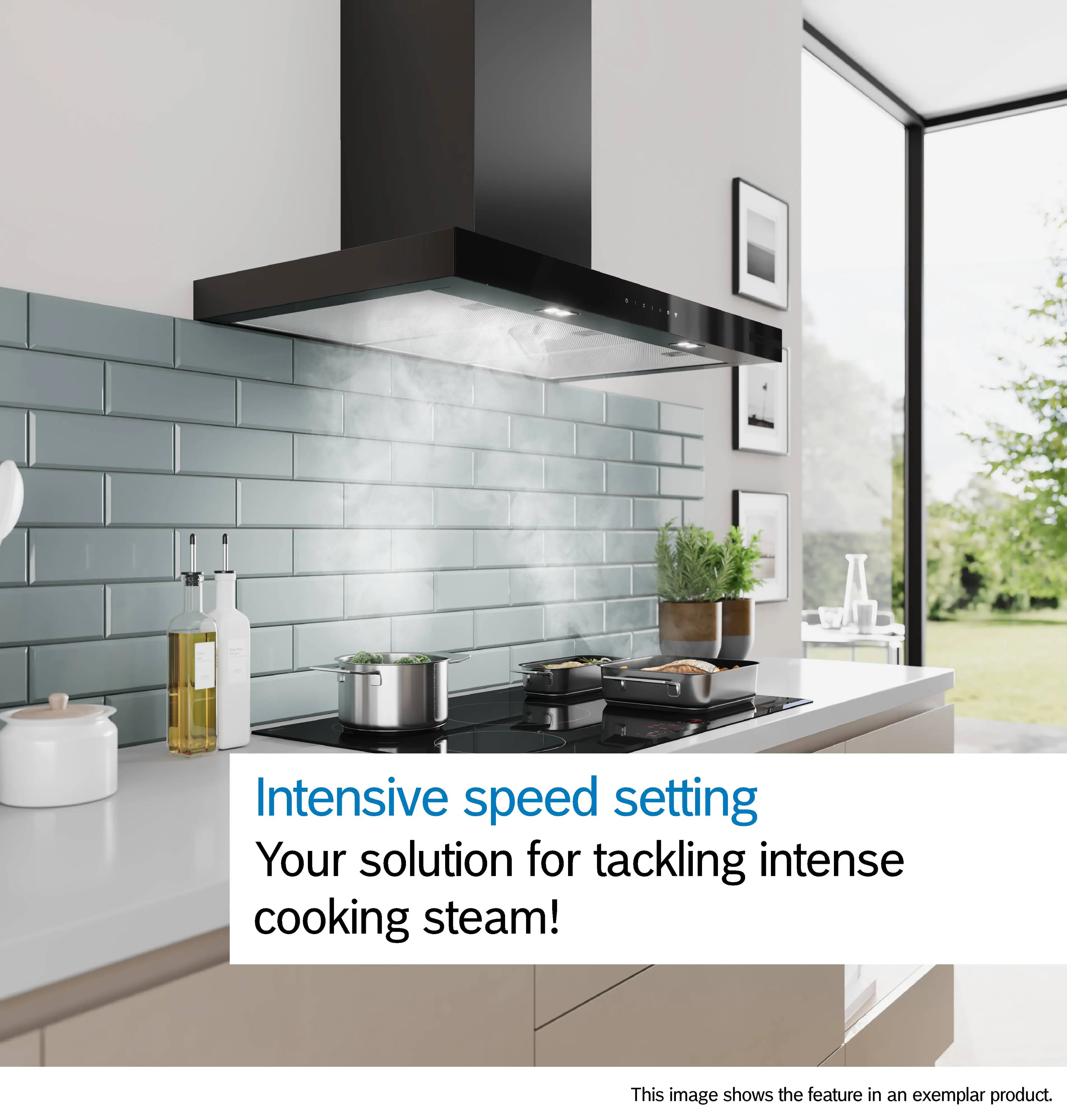

Boost position
Yes
Delay Shut off modes
Yes
Remote control
No

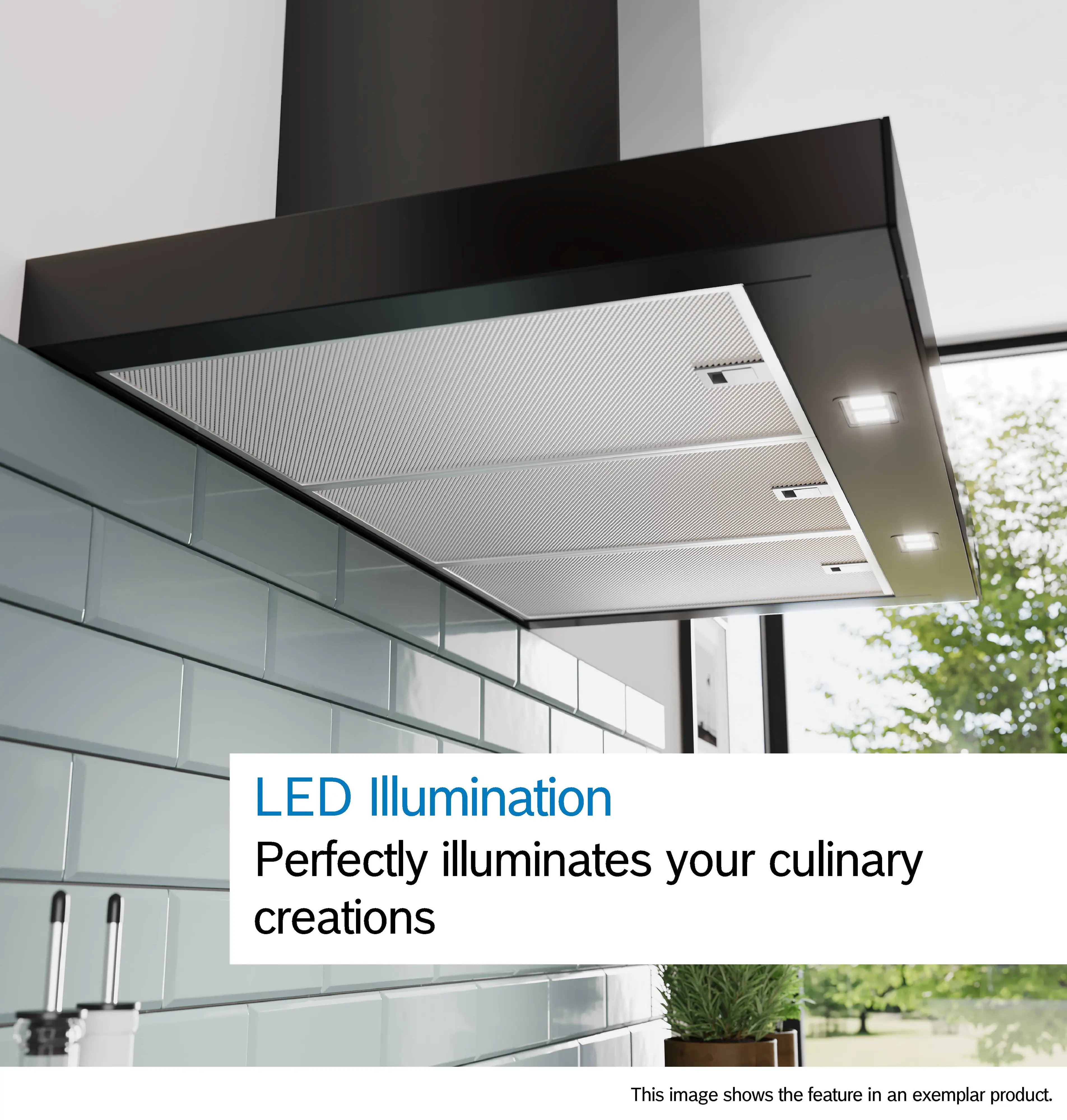

Type of lamps used
LED
Total power of the lamps
GENERAL.N_A W
Color temperature
Neutral (3.500 K)
emotionLight Pro
No

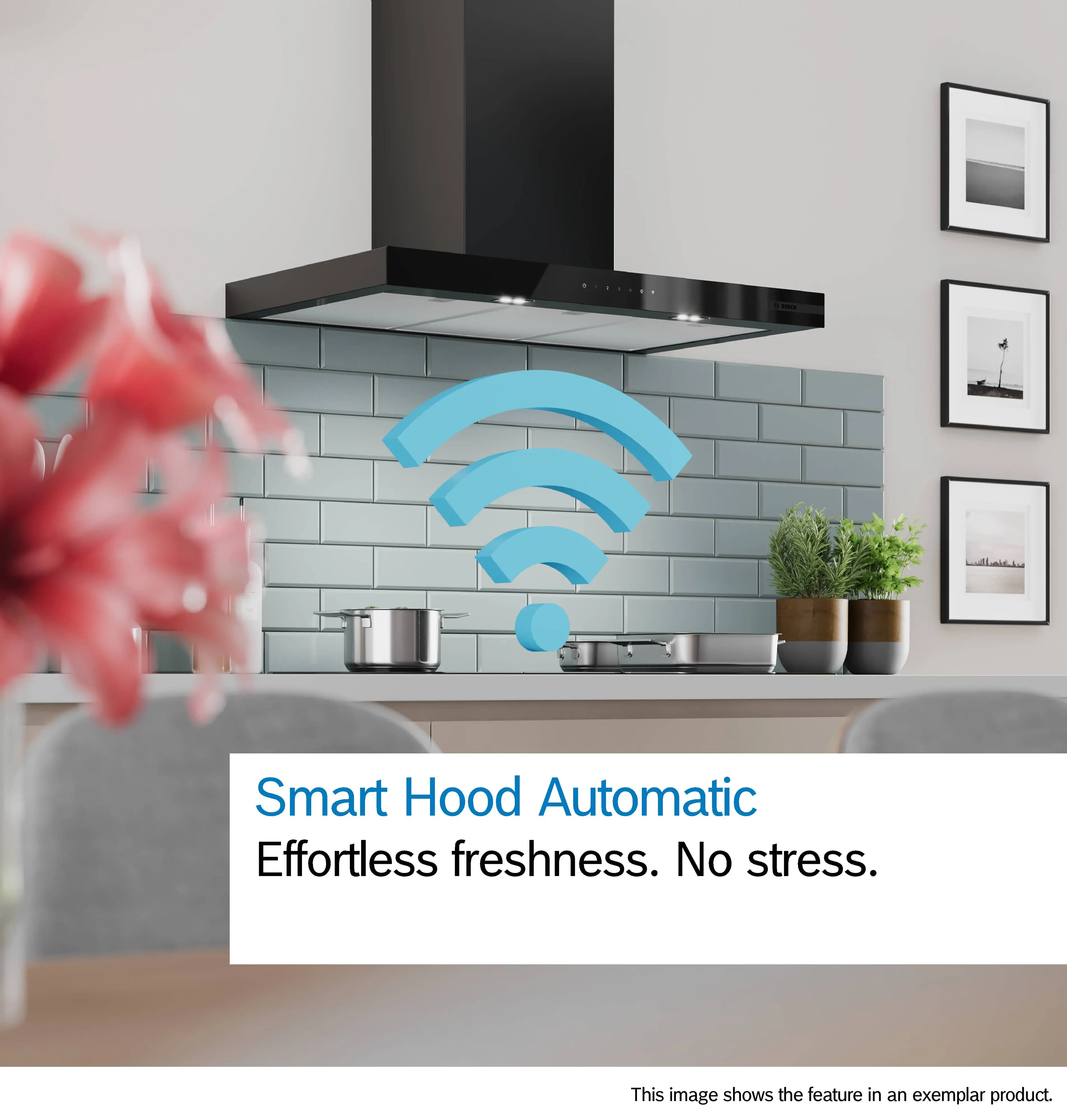

Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
Yes

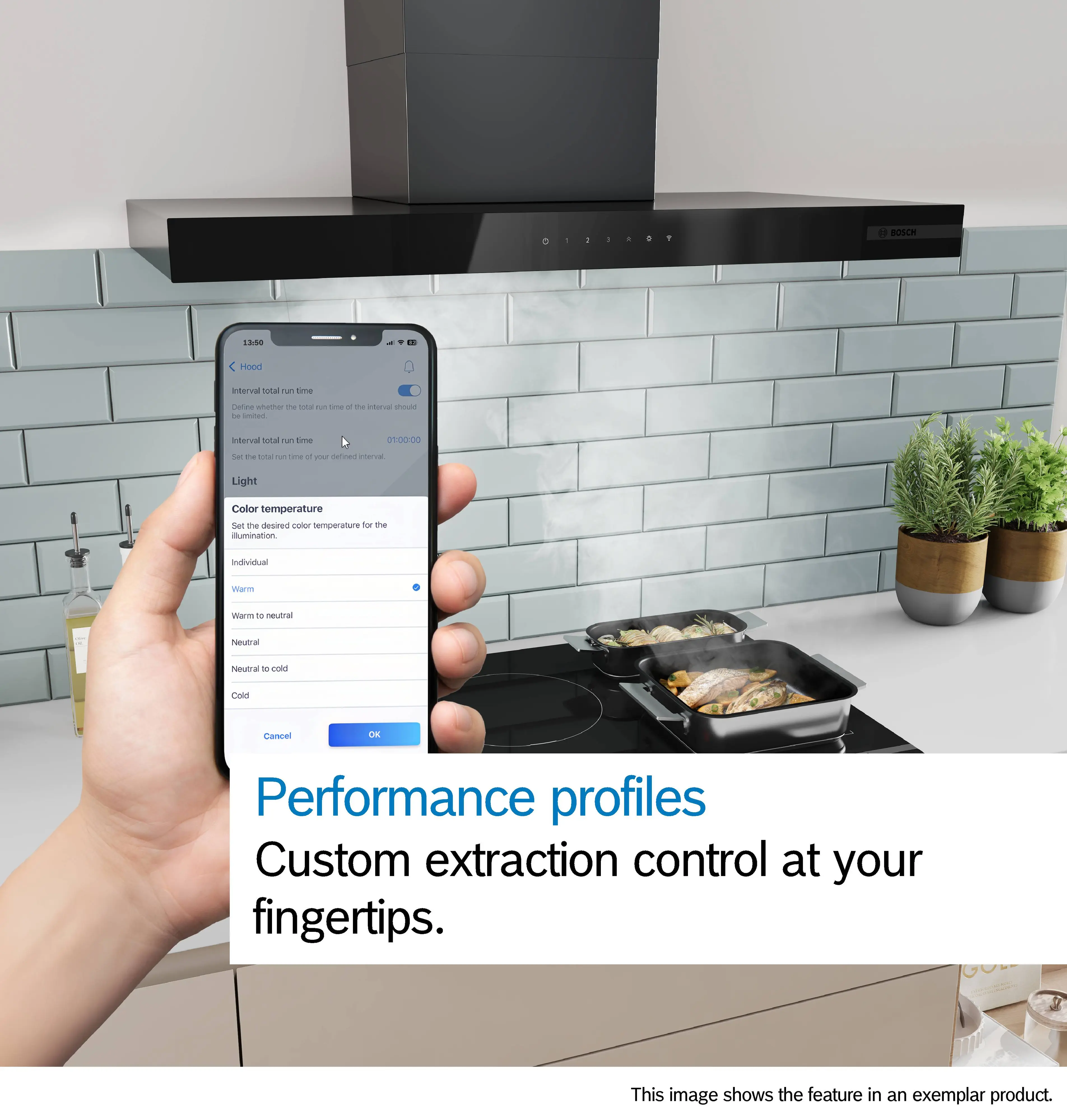

Home Connect Features
iService Remote, Remote Monitoring and Control
Hob-based hood control
Yes
