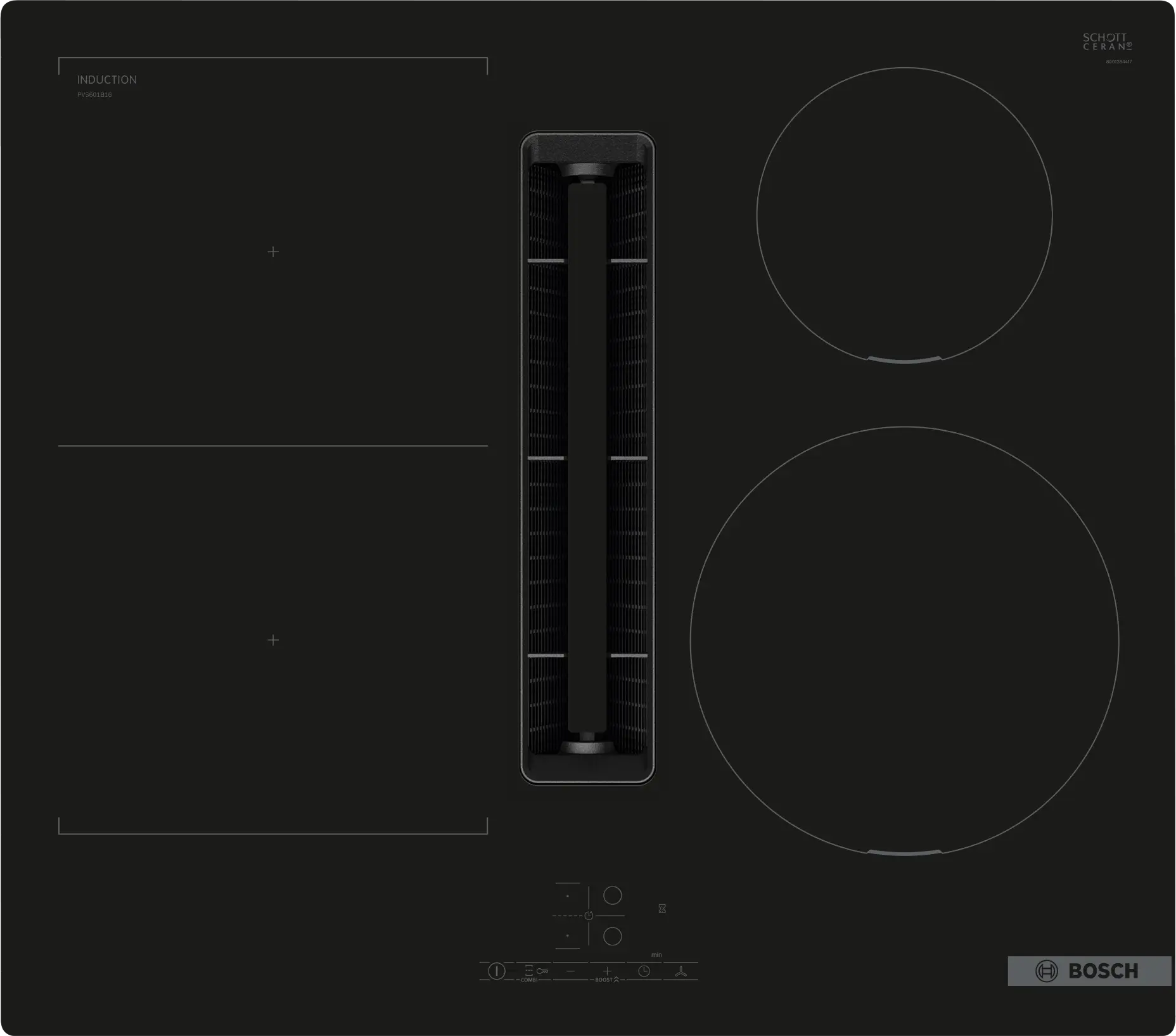

Series 4 Induction hob with integrated ventilation system 60 cm flush mountPVS601B16E
PVS601B16E
1 / 0
Series 4 Induction hob with integrated ventilation system 60 cm flush mountPVS601B16E
PVS601B16E
$4,199.00
GST included
Currently unavailable
Find a local Dealer
Find a local dealer in your vicinity
Delivery Time: 3-5 working days
Delivery Time Long Description MDA
Free delivery for orders of $150 & above
Online Store FAQ
Add your services
Available options (1)
Series 4 Induction hob with integrated ventilation system 60 cm flush mountPVS601B16E
PVS601B16E
$4,199.00
GST included
Currently unavailable
Find a local Dealer
Find a local dealer in your vicinity
Delivery Time: 3-5 working days
Delivery Time Long Description MDA
Free delivery for orders of $150 & above
Online Store FAQ
Add your services
Available options (1)
Technical Overview
Built-in / Free-standing
Built-in
Main colour of product
Black
Number of induction plates
4
Type of control
TouchSelect control panel
Type of frame
Flush with surrounding surfaces
Boost position air extraction
622 m³/h
Sound power at max. speed (2010/30/EC)
69 dB
Home Connect Footnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Awards
Specifications
Main colour of product
Black
Width
60 cm
Total number of positions that can be used at the same time
4

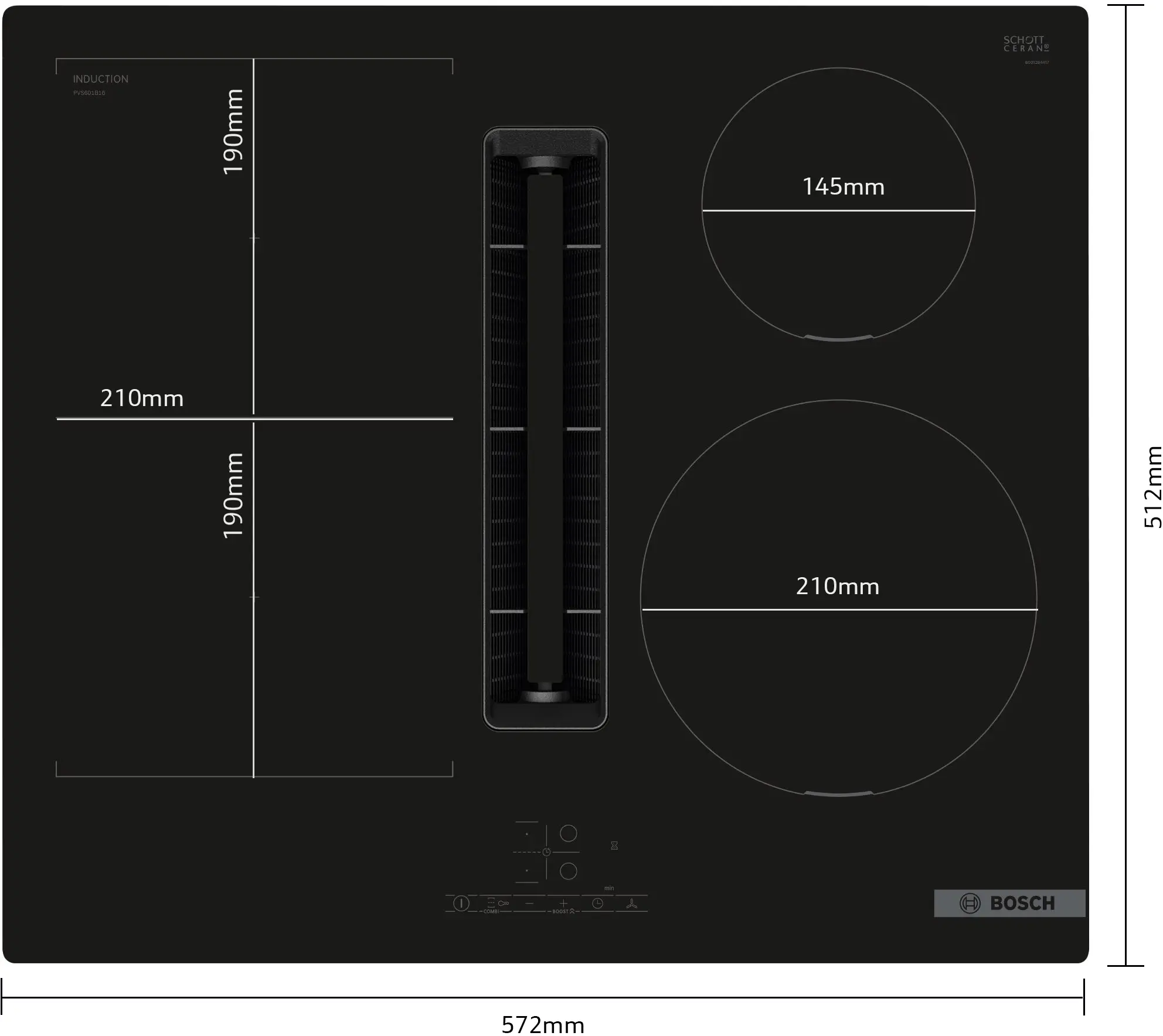

Dimensions of the heating elements
2 x (19,0 x 21,0 cm), 1 x (14,5 cm Ø), 1 x (21,0 cm Ø)
Power of the heating elements
1 x 1.4 (2.2), 3 x 2.2 (3.7) kW
Frame type
Flush fitting
Number of radiant plates
0
Number of induction plates
4
heating with booster
All
Max. air extraction
500 m³/h
Boost position air extraction
622 m³/h
Noise level
69 dB(A) re 1 pW
Energy consumption of hob
178.3 Wh/kg
Included accessories

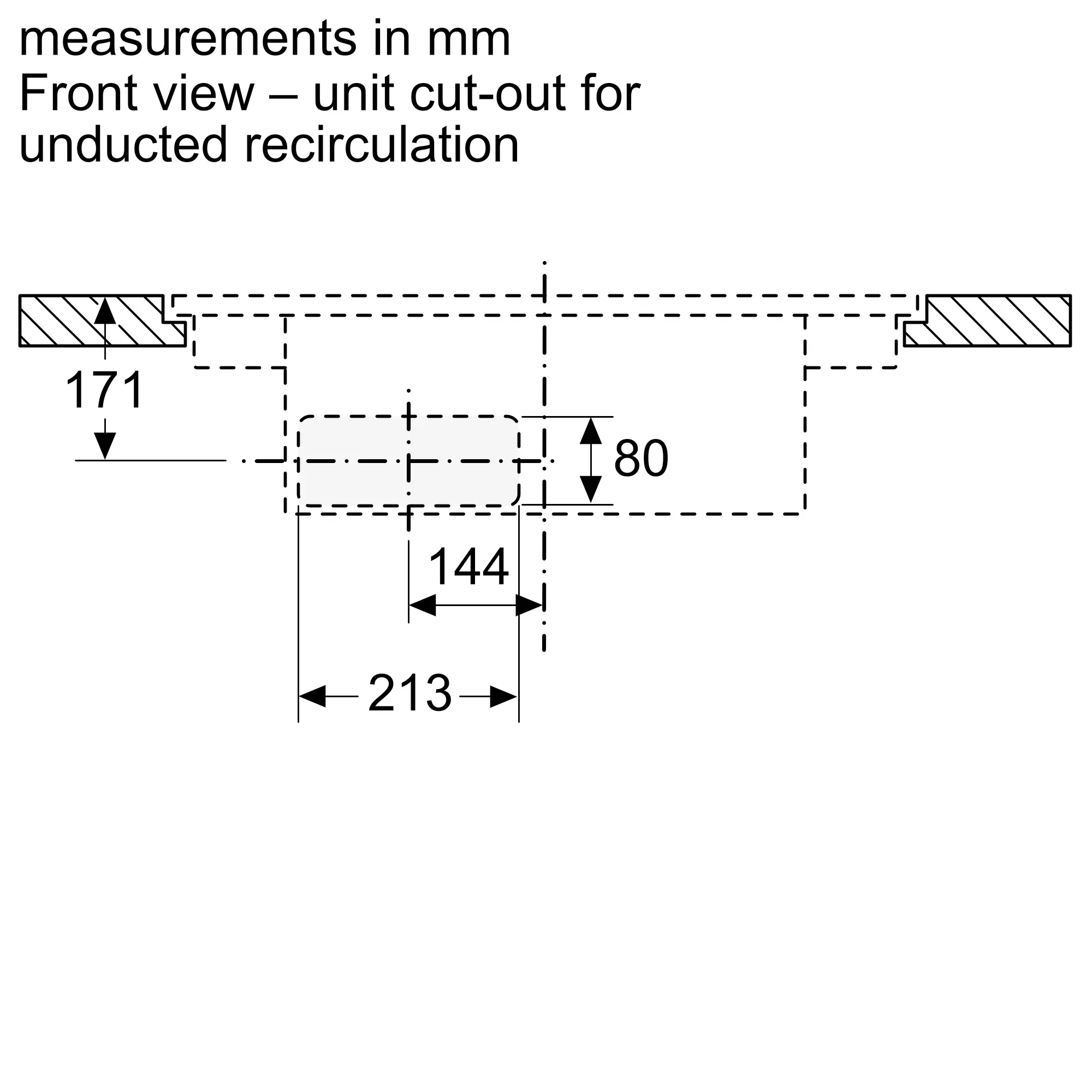

1 x Slider for unducted recirculation, 1 x Clean Air Plus odor filter

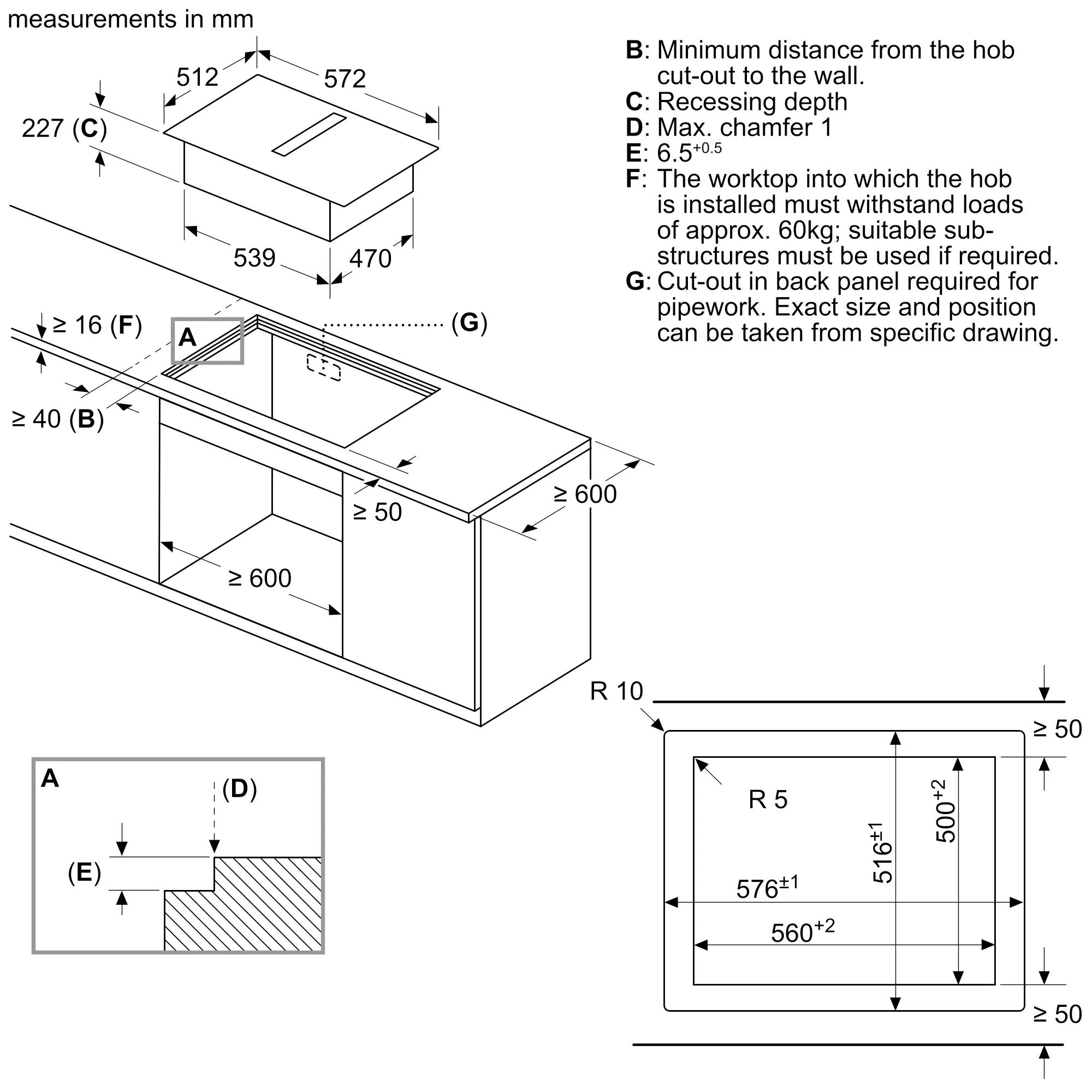

Dimensions
227x572x512 mm
Dimensions of the packed product (HxWxD)
430x690x660 mm

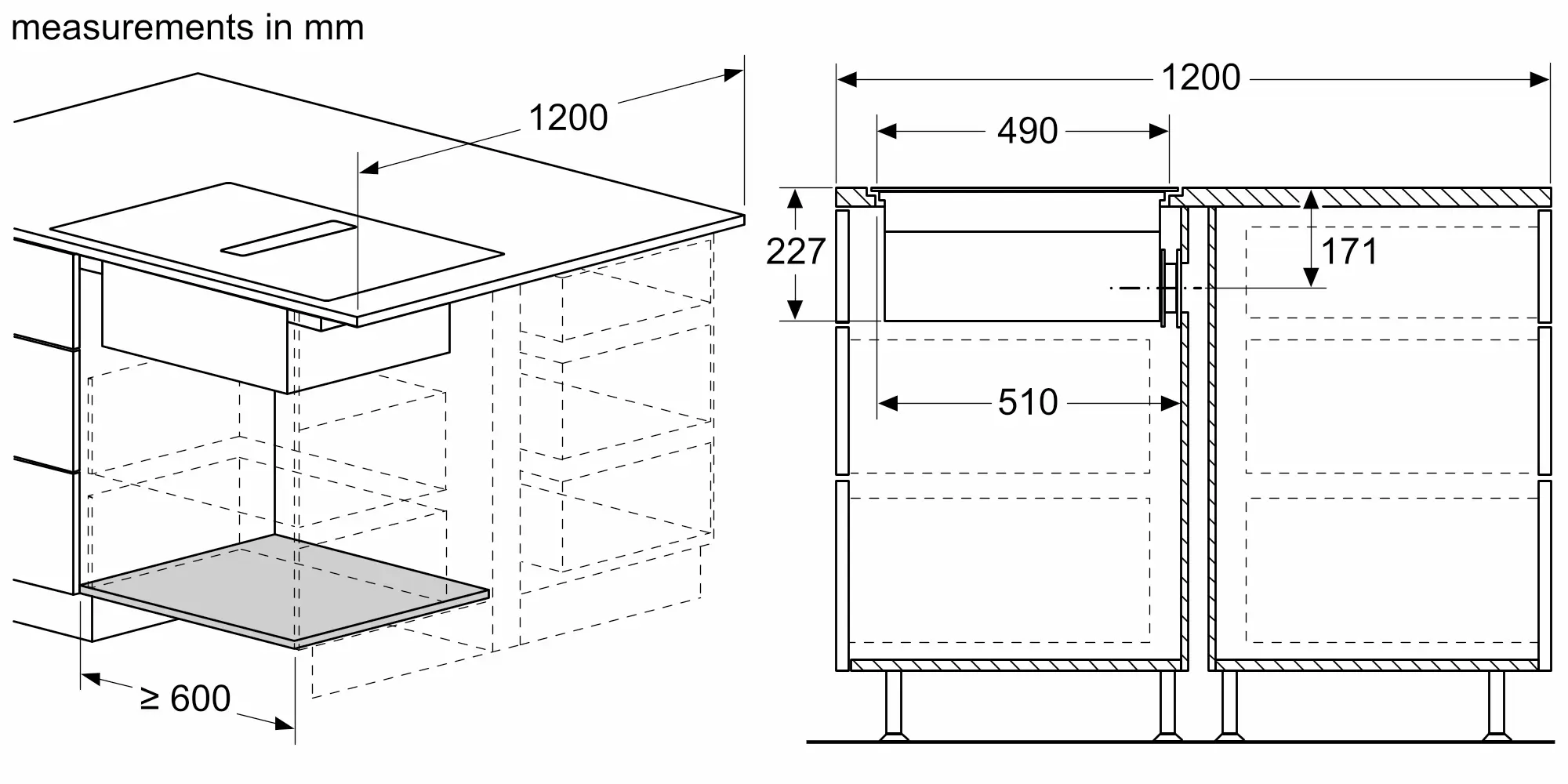

Minimum height for installation
500 mm
Minimum width for installation
560 mm
Depth for installation
227 mm
1 / 0
Connection rating
7400 W
Voltage
220-240/380-415 V
Length electrical supply cord
110 cm
Plug type
no plug
Type of control
TouchSelect control panel
hotplate control settings
Variable 17-stage power settings for each zone
Cooking zone flexibility
Combi zone
PowerBoost
Yes
Glass protect
No
PowerBoost
No
FryingSensor
No
PerfectCook - cooking sensor
No
cookingSensor Plus ready (sensor sold separately)
No
Powermove
No
Automatic Setting Transfer
No
Quick Start
Yes
Keep warm function
No
Timer
Yes
Timer
Switch-off timer (on appliance), Count-down timer (on appliance)
SilentPowerDrive - efficient and extra silent
Yes
Boost position
Yes
Delay Shut off modes
Yes
Clean filter reminders
Yes
Number of speed settings
3-stages + intensive setting
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Safety device
Child lock, Safety shut-off, ,
Residual heat indicator
Separate
