Technical Overview
Sound power at max. speed (2010/30/EC)
55 dB
Max. air extraction
460 m³/h
Boost position air extraction
730 m³/h
Colour
Stainless steel
Material body
Stainless steel
Built-in / Free-standing
Built-in
Width
90 cm
Highlights
Specifications
Width
90 cm
Colour
Stainless steel
Installation typology
Wall-mounted
Operating Mode
Convertible
Total power of the motors
130 W
Type of control setting and signalling devices
7-segment display, Low-lift pushbuttons
Number of speed settings
3-stage + 2 intensive
Max. air extraction
460 m³/h
Boost position air extraction
730 m³/h
Sound power at max. speed (2010/30/EC)
55 dB
Sound power boost (2010/30/EC)
65 dB
Max. air recirculation
340 m³/h
Boost position output recirculating
440.0 m³/h
Sound power at max. speed (recirculation)
68 dB
Sound power boost (recirculation)
73 dB
Grease filter material
Washable aluminium
Total annual energy consumption
32.5 kWh/annum

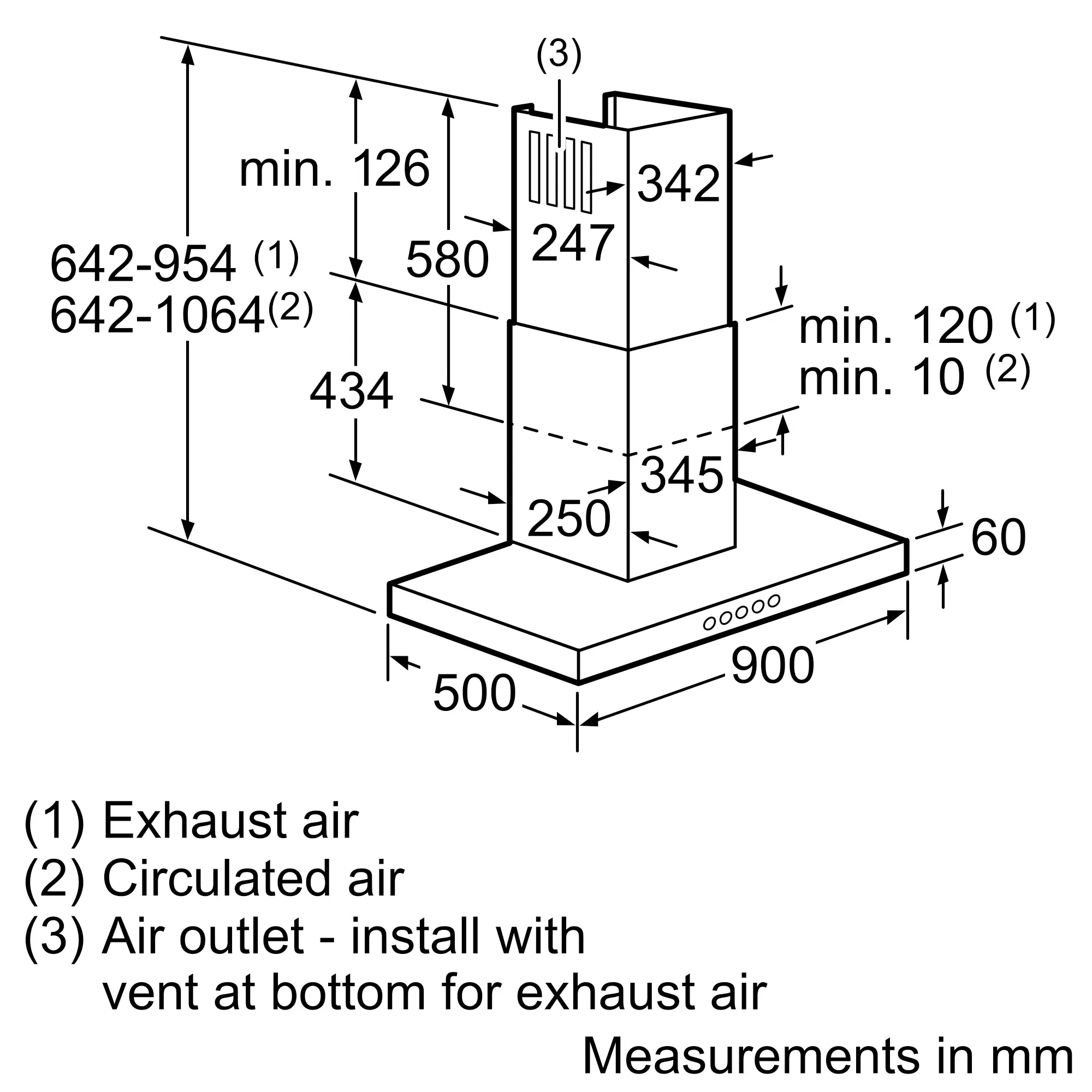

Height of the appliance
60 mm
Width of the appliance
900 mm
Depth of the product
500 mm
Height of the chimney
582-894/582-1004 mm

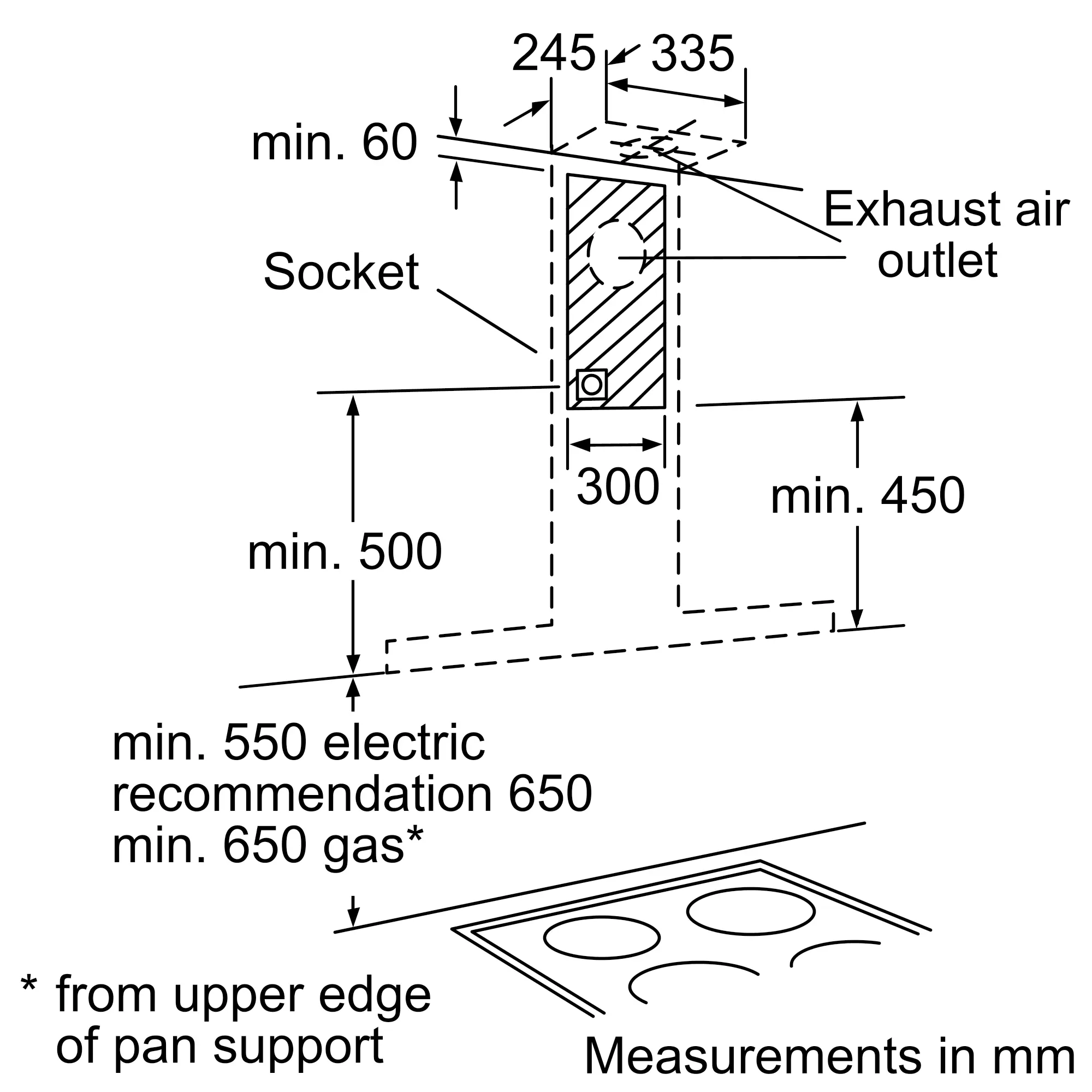

Minimum distance above an electric hob
550 mm
Minimum distance above a gas hob
650 mm

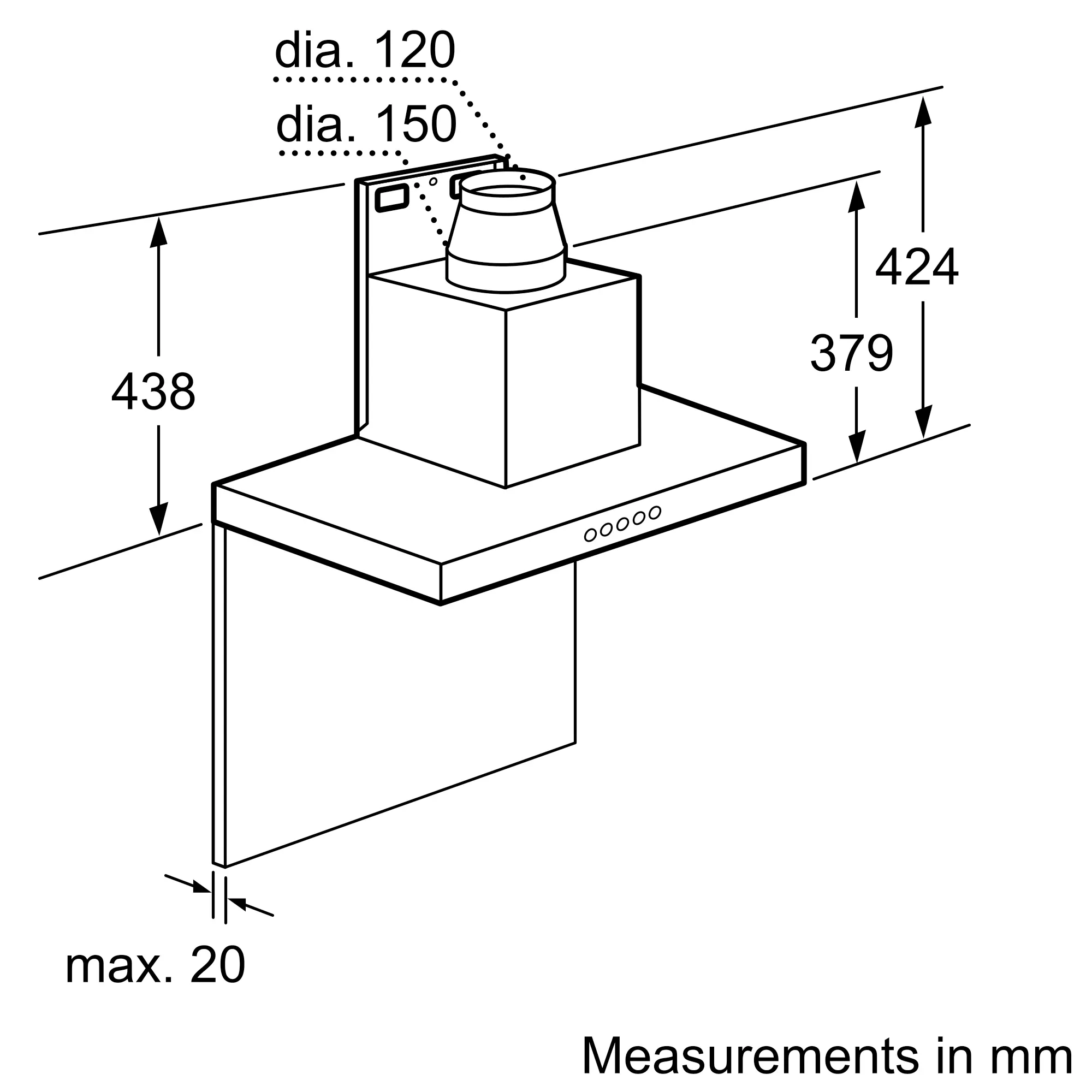

Diameter of air outlet
150 / 120 mm
No-return airflow flap
No
Length electrical supply cord
130.0 cm
Net weight
23.6 kg
1 / 0
PerfectAir
No
SilentPowerDrive - efficient and extra silent
Yes
Extremely silent appliances
Yes
Clean filter reminders
Yes
Boost position
Yes
Delay Shut off modes
Yes
Remote control
No
Type of lamps used
LED
Total power of the lamps
9 W
Color temperature
Neutral (3.500 K)
emotionLight Pro
No
Home Connect
No
Hob-based hood control
No
