Technical Overview
Sound power at max. speed (2010/30/EC)
62 dB
Max. air extraction
501 m³/h
Boost position air extraction
775 m³/h
Colour
Black
Material body
Glass
Built-in / Free-standing
Built-in
Width
80 cm
Highlights
Awards
Specifications
Width
80 cm
Colour
Black
Installation typology
Built-in
Operating Mode
Convertible
Total power of the motors
300 W
Type of control setting and signalling devices
touch control, Via app
Number of speed settings
3-stage + 2 intensive
Max. air extraction
501 m³/h
Boost position air extraction
775 m³/h
Sound power at max. speed (2010/30/EC)
62 dB
Sound power boost (2010/30/EC)
70 dB

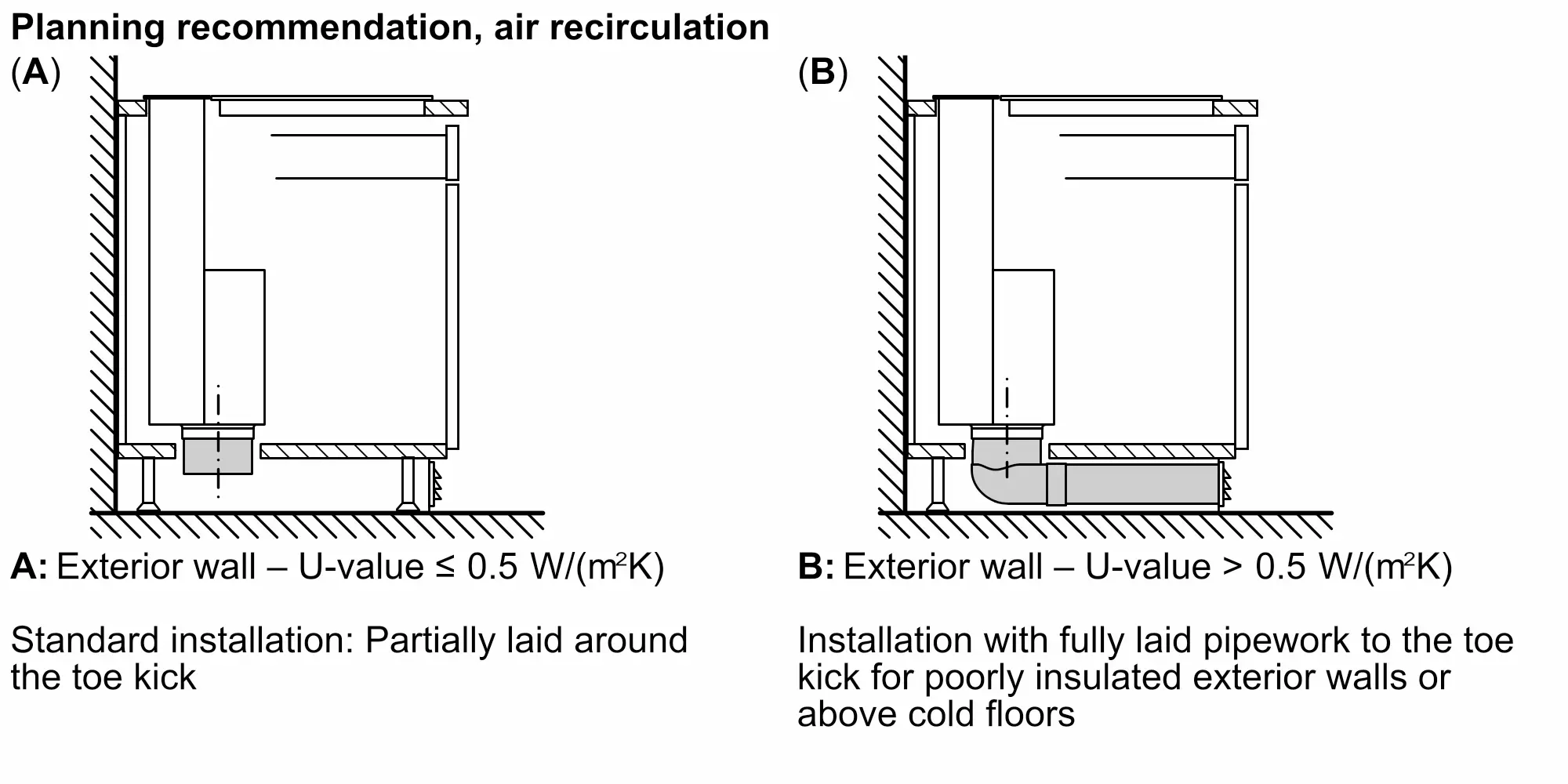

Max. air recirculation
416 m³/h
Boost position output recirculating
525 m³/h
Sound power at max. speed (recirculation)
65 dB
Sound power boost (recirculation)
70 dB
Grease filter material
Washable stainless steel
Total annual energy consumption
36.9 kWh/annum

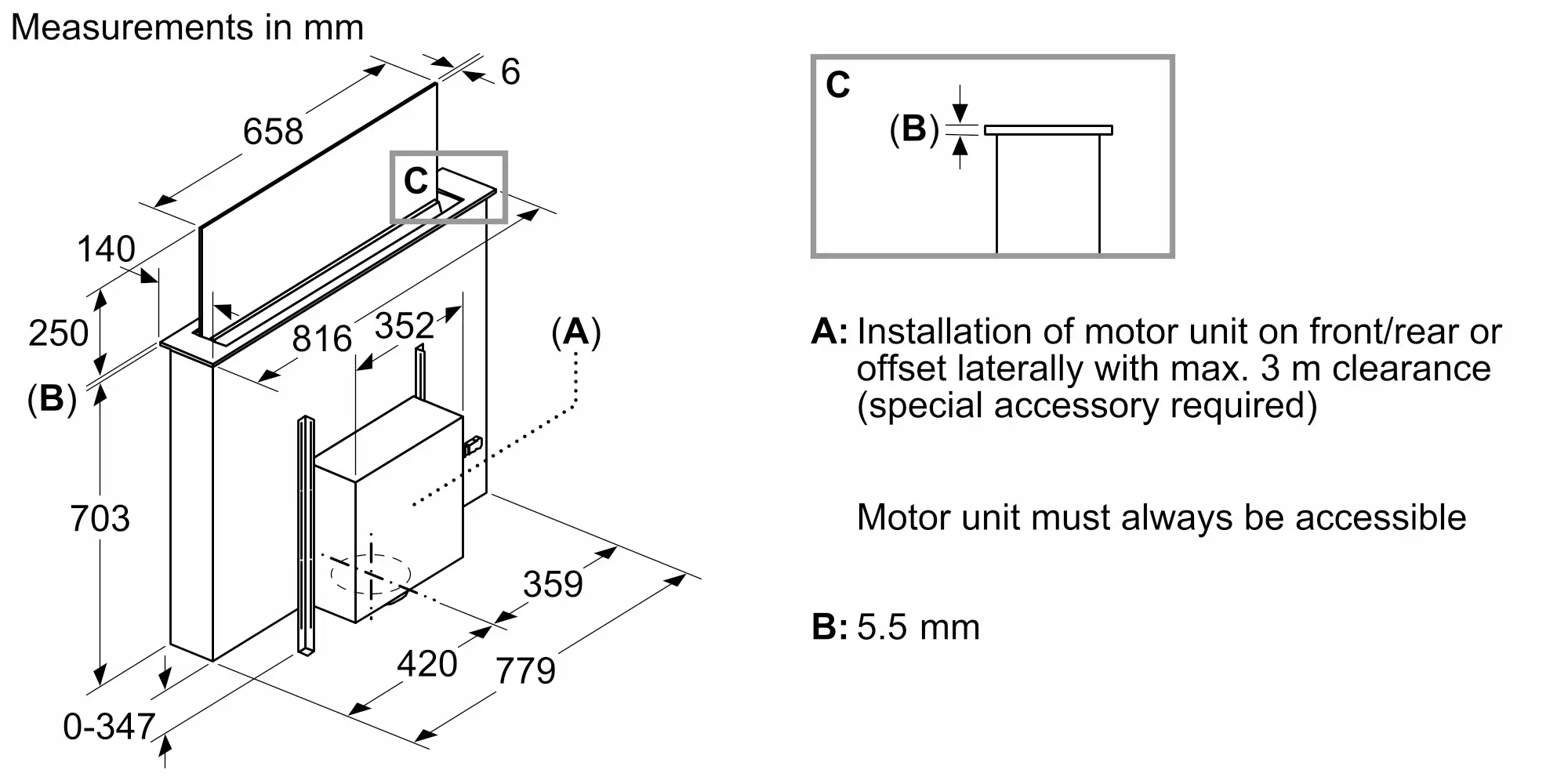

Height of the appliance
709 mm
Width of the appliance
816 mm
Depth of the product
140 mm
Height of the chimney
GENERAL.N_A mm
Diameter of air outlet
150 mm
No-return airflow flap
No
Length electrical supply cord
130 cm
Net weight
37.5 kg

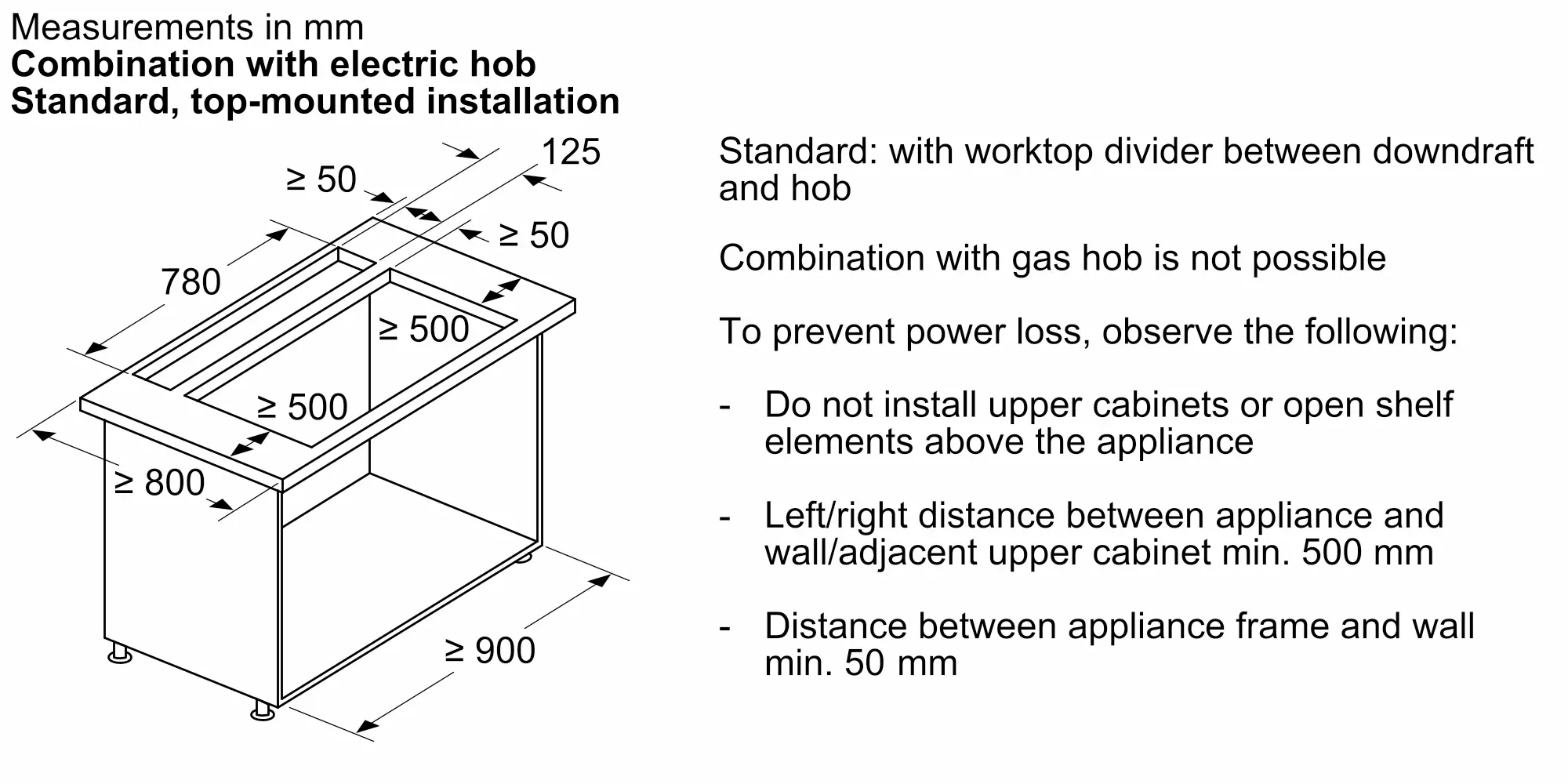

Minimum width for installation
781 mm
Maximum width for installation
781 mm
Depth for installation
123 mm
1 / 0
PerfectAir
Yes
SilentPowerDrive - efficient and extra silent
Yes
Extremely silent appliances
No
Clean filter reminders
Yes
Boost position
Yes
Delay Shut off modes
Yes
Remote control
No
Type of lamps used
None
Total power of the lamps
GENERAL.N_A W
Color temperature
Not applicable
emotionLight Pro
Yes
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
Yes
Home Connect Features
Remote Monitoring and Control
Hob-based hood control
Yes
